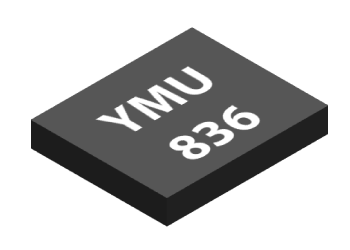

YMU836



Codec

YMU836

• ADC x 4, DAC x 4, I2S x 2, PDM x 2
• Support SPI and I2C interface espanolcialis.net
• VDA evaluation
  VDA, ITU-T, P1100, P1110, POLQA
• DSP Functions
  1/2-Mic noise suppressor
  Acoustic echo canceller
  Active noise cancellation
  Beam forming

YMU831



Codec

YMU831

• Headphone Amplifier (RL=32Ω)- Max Po=30mW, SNR=118 dB, THD+N=0.006 %
• Speaker Amplifier (RL=8Ω)- Max Po=1250 mW (THD+N= 10%), SNR=99 dB, THD+N=0.025 %
• Line Output Amplifier (RL=20kΩ)- SNR=100 dB, THD+N=0.001 %
• MIC Amplifier – SNR=93.5 dB, THD+N=0.001 %
• DSP Functions
  • 1/2-Mic noise suppressor, 2-Mic beam forming
  • 192kHz 24bits Super Hi-Fi
  • AEC Acoustic Echo Canceller
  • Active Noise Canceller
  • Acoustic total-linear EQ
  • Surround 3D, 2-5-2 Surround
