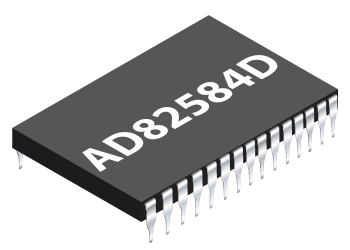

AD82584D



Audio Amp – 12/24V

AD82584D

• Digital input Class-D
• Supply voltage: 3.3V for digital circuit;
  8V~26V for loudspeaker driver
• Max output power @24V for speaker:
  10W x 2CH into 8Ω @0.09% THD+N
  15W x 2CH into 8Ω @0.15% THD+N
  25W x 2CH into 8Ω @0.28% THD+N
  50W x 1CH into 4Ω
• PSNR & DR(A-weighting) Loudspeaker: 98dB (PSNR), 108dB (DR) @24V
• I2C control interface with selectable device address
  16 bands PEQ
  Dynamic range control
  Volume control by +24dB~-103dB, 0.125dB/step

AD82010



Audio Amp – 12/24V

AD82010

• Digital input Class-D
• Supply voltage range:
  3.0~3.3V for digital circuit
  4.5V~26V for loudspeaker driver
• Max output power:
  20W x 2ch into 8Ω@24V
  40W x 1ch into 4Ω@24V
• Filter-less solution
• DC/Clock detection function
• PSNR & DR(A-weighting) Loudspeaker:
  102dB (DR) @ 24V

AD52067



Audio Amp – 12/24V

AD52067

• Analog input Class-D
• Supply voltage range: 2.9V~12V
• Adjustable boost converter output up to 14V
• Fixed gain setting (26dB)
• Filter-less
• Efficiency 78% @Vin=4.2V/Output 8Wx2
• Loudspeaker Output power @ 10% THD+N
  16Wx2/CH into 4Ω loudspeaker@14V
  20Wx1/CH into 4Ω loudspeaker@14V
