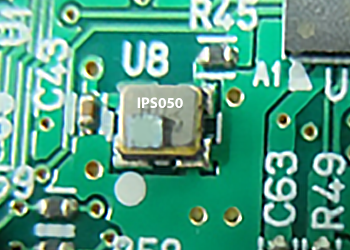

IPS050



SPXO

IPS050 Series

• Output : CMOS 1.6 ~ 3.63 V
• Crystal frequency : 32.768 ~ 105.469KHZ/0.31 ~ 8.5MHz
• Operation temperature : -40 ~ 85C
• Divide function : 1/256 ~ 1/1024 for KHz, 1/4 ~ 1/16 for MHz
• Small chip size : 0.52mm × 0.56mm
• Frequency stability to Vdd : Within ±1ppm
• Low power consumption : 10μA

IPS040



SPXO

IPS040 Series

• Output : CMOS 1.62 ~ 3.63V
• Crystal frequency : 20～160MHz
• Operation temperature : -40 ~ 90C
• Divide function : selectable by program
• Small chip size : 0.74mm × 0.85mm
• Frequency stability to Vdd : Within ±1ppm

IPS029



SPXO

IPS029 Series

• Output : CMOS 0.8 ~ 3.63V
• Crystal frequency : 20～160MHz
• Operation temperature : -40 ~ 125C
• Divide function : 1/2, 1/4, 1/8, 1/32, 1/64
• Small chip size : 0.55mm × 0.56mm
• Frequency stability to Vdd : Within ±2ppm

IPS020



SPXO

IPS020 Series

• Output : Differential 2.38～3.63V
• Crystal frequency : 27～220MHz
• Operation temperature : -40 ~ 125C
• Divide function : 1/2
• Small chip size : 0.65mm × 0.75mm
• Frequency stability to Vdd : Within ±1ppm
• Support PECL, LVDS and HCSL output

IPS010



SPXO

IPS010 Series

• Output : CMOS 1.2 ~ 5.5V
• Crystal frequency : 32.768KHz
• Operation temperature : -40 ~ 125C
• Small chip size : 0.74mm × 0.7mm
• Frequency stability to Vdd : Within ±0.5Hz
• Low power consumption : 0.5μA

IPS009



SPXO

IPS009 Series

• Output : CMOS 1.2 ~ 5.5V
• Crystal frequency : 14～100MHz
• Operation temperature : -40 ~ 125C
• Divide function : 1/2, 1/4, 1/8
• Small chip size : 0.7mm × 0.75mm
• Frequency stability to Vdd : Within ±1ppm
