Audio Amp – 12/24V

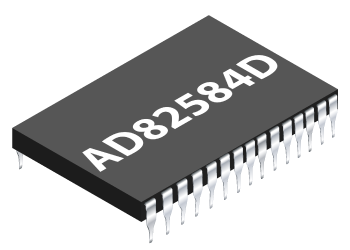

AD82584D

• Digital input Class-D
• Supply voltage: 3.3V for digital circuit;
  8V~26V for loudspeaker driver
• Max output power @24V for speaker:
  10W x 2CH into 8Ω @0.09% THD+N
  15W x 2CH into 8Ω @0.15% THD+N
  25W x 2CH into 8Ω @0.28% THD+N
  50W x 1CH into 4Ω
• PSNR & DR(A-weighting) Loudspeaker: 98dB (PSNR), 108dB (DR) @24V
• I2C control interface with selectable device address
  16 bands PEQ
  Dynamic range control
  Volume control by +24dB~-103dB, 0.125dB/step
